118 048 ₸
Показать оптовые цены
Отправка с 26 октября 2024Терминал нового поколения. Имеет 2-х ядерный процессор 1,0G, Оперативная память 512M, 4Гб память для хранения данных, 200000 событий, 5000 отпечатков пальцев, имеет встоенную систему Linux. Оснащен новым 3,2-дюймовым дисплеем с высоким разрешением и оптическим датчиком активации сканера отпечатков пальцев. Поддерживает TCP/IP и Wi-Fi. Питание 12В, POE

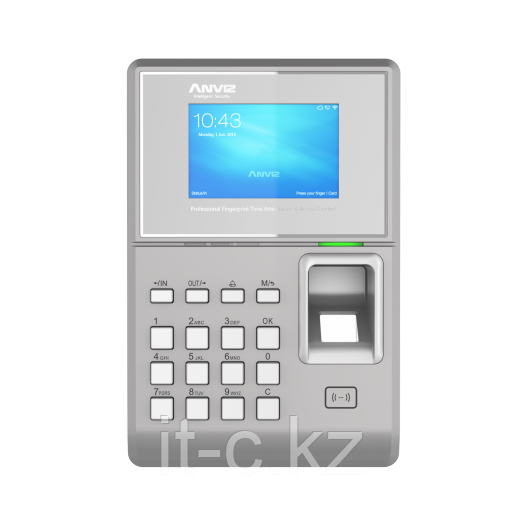

TC580 with dual-core 1.0G processor and embedded Linux system. It is a smart, high-performance fingerprint attendance access control one machine.
Equipped with a new 3.2-inch high-definition display screen and Anviz optical touch activated fingerprint sensor, providing a new experience for user.
And has TCP/IP and WIFI network communication. The device can be linked from everywhere.
TC580 has powerful access control and PoE power supply,to facilitate the installation of equipment to improve the efficiency of the implementation of the project.
Linux platform & Dual 1.0GHz CPU to provide a safe and stable performance
Comparison time in less than 0.5s
Ergonomic design with new keypad to provide a better
user experience
AFOS the lastest fingerprint reader, touch on activation infrared,
optical imaging technology
Standard with WiFi provided wireless Communication
Provide relay output for standalone Access Control
Support Wiegand, RS485 and USB-host extended communication
HD and brighter 3.2 inch color display
Ease the experience of user by brand new UI design
PoE(Power Over Ethernet) fast & easy installation
Linux platform & Dual 1.0GHz CPU to provide a safe and stable performance
Comparison time in less than 0.5s
Ergonomic design with new keypad to provide a better
user experience
AFOS the lastest fingerprint reader, touch on activation infrared,
optical imaging technology
Standard with WiFi provided wireless Communication
Provide relay output for standalone Access Control
Support Wiegand, RS485 and USB-host extended communication
HD and brighter 3.2 inch color display
Ease the experience of user by brand new UI design
PoE(Power Over Ethernet) fast & easy installation
| Capacity | Max User | 5,000 |
| Max Template | 5,000(1:N) | |
| Max Log | 200,000 | |
| Inferface | Comm | TCP/IP,USB Host, Mini USB, RS485,Standard WIFI |
| Relay | 1 Relay | |
| I/O | Wiegand Out, Door Open Sensor,Tamper Alarm, Exit Button | |
| Feature | Identification Mode | Fingerprint, Card, Password |
| Verification Speed | <0.5 Sec | |
| Fingerprint Image Display | Yes | |
| Self-defined Status | 8 attendance status auto switch | |
| Webserver | Internal Webserver | |
| Software | Anviz Crosschex Cloud | |
| Hardware | Platform | Linux |
| CPU | Dual 1.0 GHz High Speed CPU | |
| Sensor | AFOS Touch Active Sensor | |
| LCD | 3.2” HD TFT LCD | |
| LED | Three-color indicator light | |
| RFID Card | Standard 125KHz EM, Optional 13.56MHz Mifare | |
| Dimensions | 125x189x35mm(4.9x7.4x1.4″) | |
| Operating Temperature | -30°C to 60°C | |
| Humidity Verification | 10% to 90% | |
| Power | DC 12V | |
| Certificates | CE, FCC, RoHS |
| Основные | |
|---|---|
| Количество пользователей | 1500 чел. |
| Страна производитель | Китай |
| Производитель | Anviz |
| Гарантийный срок | 12 мес |
| Цвет | Черный |
| Напряжение питания | 12 В |
