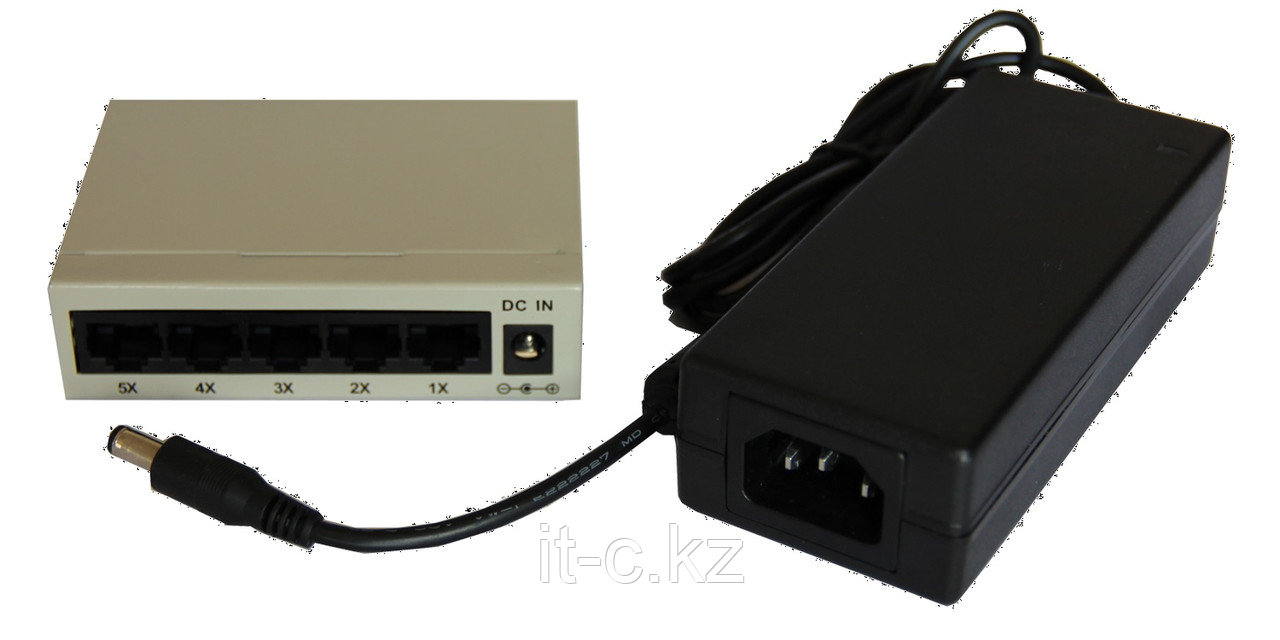

Poe switch Коммутатор Hi-NET S1005-4P-65 POE Switch (4 POE Port )

Item

Description

Summarize

Fixed port

5 10/100Mbps RJ45 port

POE Port

4 PoE ports (Port 2-5)

LED Indicators

PWR, PoE, Link/Act LED.

Input voltage

100V～240V AC，50/60Hz (for power adapter)

48VDC (for switch)

Network Media

10BASE-TX: UTP category 5, 5e cable (≤250m)
100BASE-TX: UTP category 5, 5e cable (≤150m)

Forwarding Rate

10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port

Power Supplies

65W,96W,135W Optional

Operating temperature

0℃～40℃.

Storage temperature

-10℃～70℃.

Relative humidity

20%～85% (non-condensing).

Thermal methods

Fanless.

Switching capacity

1G.

MAC address table

1K.

Traffic control

IEEE 802.3x full-duplex flow control.

Size

9.2*6.9*2.5cm

Package Size

19.1*14.1*6.4cm

Weight

0.6Kg

Package

S1005-P POE switch

User Manual

Power Adapter

Power Cable

Warranty Card

PoE

PoE port

4 10/100Base-TX ports.

PoE Standard

IEEE802.3af, IEEE802.3at, per port 15.4W, max 30W

Pin assignment

V+ (RJ45 Pin 4, 5), V- (RJ45 Pin 7, 8).

Extend Function

Power lightning protection, solid vlan.
